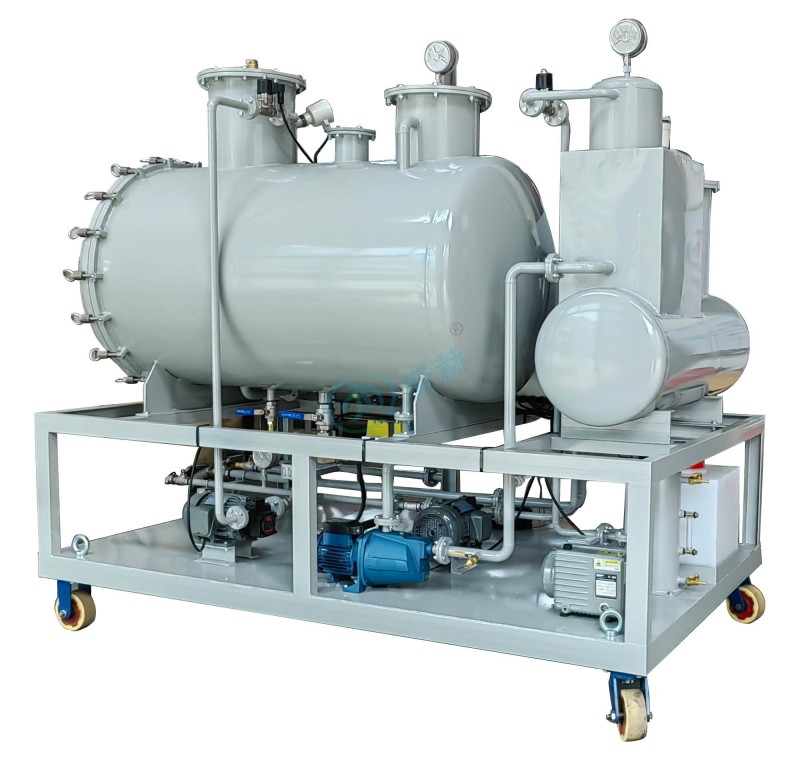

SCY含油污水处理装置
SCY Oil-Containing Wastewater Treatment Device
含油废水存在于众多生产行业，它产生于水电站，电厂，机械加工，轧钢，化肥，玻璃，炼油，油库，铁路，船舶等部门。如果含油废水直接排放，一方面会严重污染环境，另一方面也浪费了水和油。含油污水面广量大，在水电站运行，石油开采，石油炼制，石油化工，油品贮运，油轮事故，轮船航运，车辆清洗，机械制造，食品加工等过程中均会产生含油污水，油污染作为一种常见的污染，对环境保护和生态平衡危害极大。我们已经对此进行了充分研究，获得了行之有效的除油方法，并且还在进行不断的开发创新，聚结式油中分水技术是我公司开发出来的一项高新技术。也是当前促进改革和保证社会持续发展的关键技术之一，已在能源，电子，化工，环保，医药等领域发挥着独特的作用。
Oily wastewater exists in many industries and comes from places like hydropower stations, power plants, machining, steel rolling, fertilizer production, glass making, oil refining, oil depots, railways, and shipping. If oily wastewater is discharged directly, it not only seriously pollutes the environment but also wastes water and oil. Oily wastewater is widespread and produced in large amounts—it can appear during operations in hydropower stations, oil extraction, oil refining, petrochemical processes, oil storage and transportation, oil tanker accidents, shipping, vehicle washing, machinery manufacturing, and food processing. Oil pollution, as a common type of contamination, is highly harmful to environmental protection and ecological balance. We've done thorough research on this, developed effective oil removal methods, and are continuously innovating. Our company's coalescing-based oil-water separation technology is a high-tech solution we've developed. It's also one of the key technologies that helps drive reform and ensures sustainable social development, and it's already playing a unique role in energy, electronics, chemical industries, environmental protection, and pharmaceuticals.
一、技术特点
(1)采用"粘附聚结"与"亲吸性分离"技术相结合，去油污高效，快速。
(2)先去除水面上浮油，其次去除水中的微粒油份，再去除水中的超细油粒分子和水中的有机物及臭味，最后达标
排放。
(3)油污在线实时探测，并实现自动排放。
(4)处理后的排放水达到国家GB8978综合排放标准(水中含油5mg儿L，悬浮物30mg/L).
1. Technical Features
(1) Combines 'adhesive agglomeration' and 'affinity separation' technologies for efficient and fast grease removal.
(2) First removes floating oil on the water surface, then removes tiny oil particles in the water, and finally removes ultra-fine oil molecules, organic matter, and odors, achieving standard discharge.
(3) Oil pollution is detected online in real-time, with automatic discharge.
(4) The treated water meets the national GB8978 comprehensive discharge standard (oil content in water 5 mg/L, suspended solids 30 mg/L).
二、产品技术参数
2. Product Technical Specifications
型号 Model | 处理能力(m³/h) Processing capacity (m³/h) | 进出口径(mm) Inlet/Outlet Diameter (mm) | 电机功率(KW) Motor Power (KW) | 工作压力(Mpa) Working Pressure (Mpa) |
SCY-1 | 1 | 25 | 1.5 | 0.25 |
SCY-2 | 2 | 25 | 1.5 | 0.25 |
SCY-3 | 3 | 30 | 2.2 | 0.3 |
SCY-5 | 5 | 40 | 3 | 0.3 |
SCY-10 | 10 | 50 | 5.5 | 0.35 |
SCY-20 | 20 | 65 | 11 | 0.35 |
SCY-30 | 30 | 80 | 15 | 0.35 |
SCY-50 | 50 | 100 | 18.5 | 0.35 |
SCY-100 | 100 | 150 | 22 | 0.35 |
三、服务
我司在接收到客户信息后，售后人员将在24小时做出答应，根据地址，以快的时间到达现场解决问题并将任务落实，我司部门设有的售后岗位，并有多名技术全面的技术支持人员，拥有完善的服务设施和技术力量，配有充足的零配件仓库，有维修工具20余套，多名维修人员，每周进行培训指导工作。
由于我司产品属于大件和非标定制产品，部分产品仅参考价格，购买前先与客服沟通，我们会根据您的要求作出方案和实际价格以及发货周期。
